Drop Cable 8 Port TV FTTX 4core Fiber Optic Network Box

Basic Information
Place of Origin: CHINA
Brand Name: OPTFOCUS
Certification: CE, ISO
Model Number: OFS-FTH-208C2
Minimum Order Quantity: 10 PCS
Price: USD 4-6
Packaging Details: carton
Delivery Time: 14days
Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability: 200000 pcs/month
Capacity: Sc 8 Ports, LC 16 Ports Material: PC+ABS
Color: White Dimensions: 227*181*54.5mm
Weight: 1.2kg Keywords: 8 Port Fiber Optic Terminal Box
High Light:

FTTX Fiber Optic Network Box

,

4core Fiber Optic Network Box

,

FTTX Drop Cable Termination Box

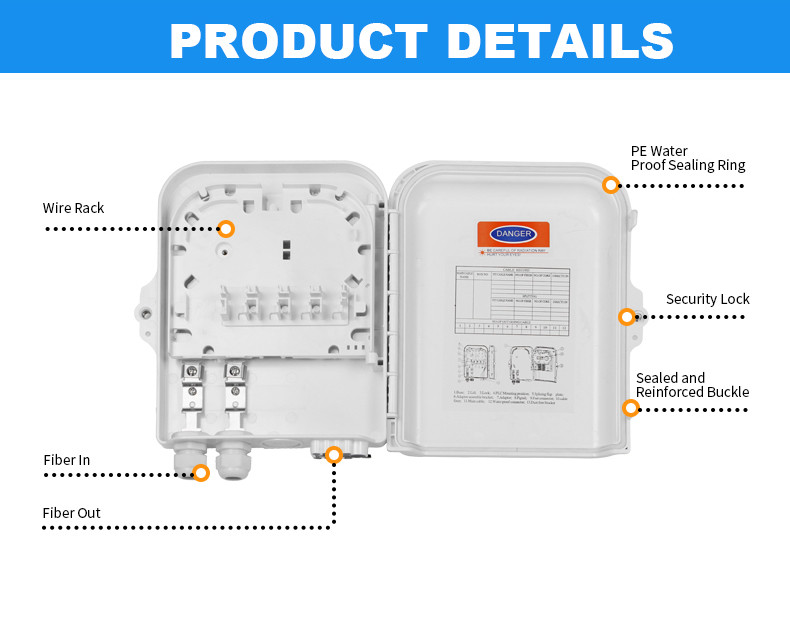

OFS-FTH-208C Fiber Access Terminal - 8 Cores



Description

OFS-FTH-208C fiber access termination box is able to hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Features



Drop Cable 8 Port TV FTTX 4core Fiber Optic Network Box 0 Water-proof design with IP-66 Protection level.



Drop Cable 8 Port TV FTTX 4core Fiber Optic Network Box 0 Integrated with splice cassette and cable management rods.



Drop Cable 8 Port TV FTTX 4core Fiber Optic Network Box 0 Manage fibers in a reasonable fiber radius condition.



Drop Cable 8 Port TV FTTX 4core Fiber Optic Network Box 0 Easy to maintain and extend the capacity.



Drop Cable 8 Port TV FTTX 4core Fiber Optic Network Box 0 Fiber bend radius control more than 40mm.



Drop Cable 8 Port TV FTTX 4core Fiber Optic Network Box 5 Suitable for the fusion splice or mechanical splice.



Drop Cable 8 Port TV FTTX 4core Fiber Optic Network Box 0 1*8 Splitter can be installed as an option.



Drop Cable 8 Port TV FTTX 4core Fiber Optic Network Box 0Efficient cable management.



8 ports cable entrance for drop cable.



Configuration



Modle Material Size Max Capacity Weight Color
OFS-FTH-208C1 PC +ABS

A*B*C(mm)

227*181*54.5

SC LC PLC 1.0kg White/black
8 Ports 16 Ports

1pcs 1x8(SC)

Mini type

OFS-FTH-208C2 PC +ABS

A*B*C(mm)

227*181*54.5

SC

8Ports

16 Ports

PLC

1pcs 1x8(SC)

Mini type

1.0kg White/black



Drop Cable 8 Port TV FTTX 4core Fiber Optic Network Box 8
