| Place of Origin: | China |
|---|---|
| Brand Name: | Neutral |
| Certification: | CE ISO |
| Model Number: | OFS-FTH-208A |
| Minimum Order Quantity: | 1 piece |
| Price: | USD 7.5~10.5/PIECE |
| Packaging Details: | 60 PCS/CTN |
| Delivery Time: | 5-10 days, depend on the quantity |
| Payment Terms: | L/C, T/T, Western Union, Paypal and so on |
| Supply Ability: | 50000 pcs / month |
| Features: | Anti-UV, Ultra Violet Resistant And Rainfall Resistant | Material: | PC+ABS, ABS |
|---|---|---|---|
| Type: | 8 Ports | Splitter: | Mini Type 1*4 Or 1*8 Plc |
| Protection Level: | IP66 | Dimension: | 200*215*54mm |
| High Light: | FTTH Wall Mount Terminal Box,FTTH Fiber Access Terminal Box,PLC Splitter FTTH Termination Box |
||

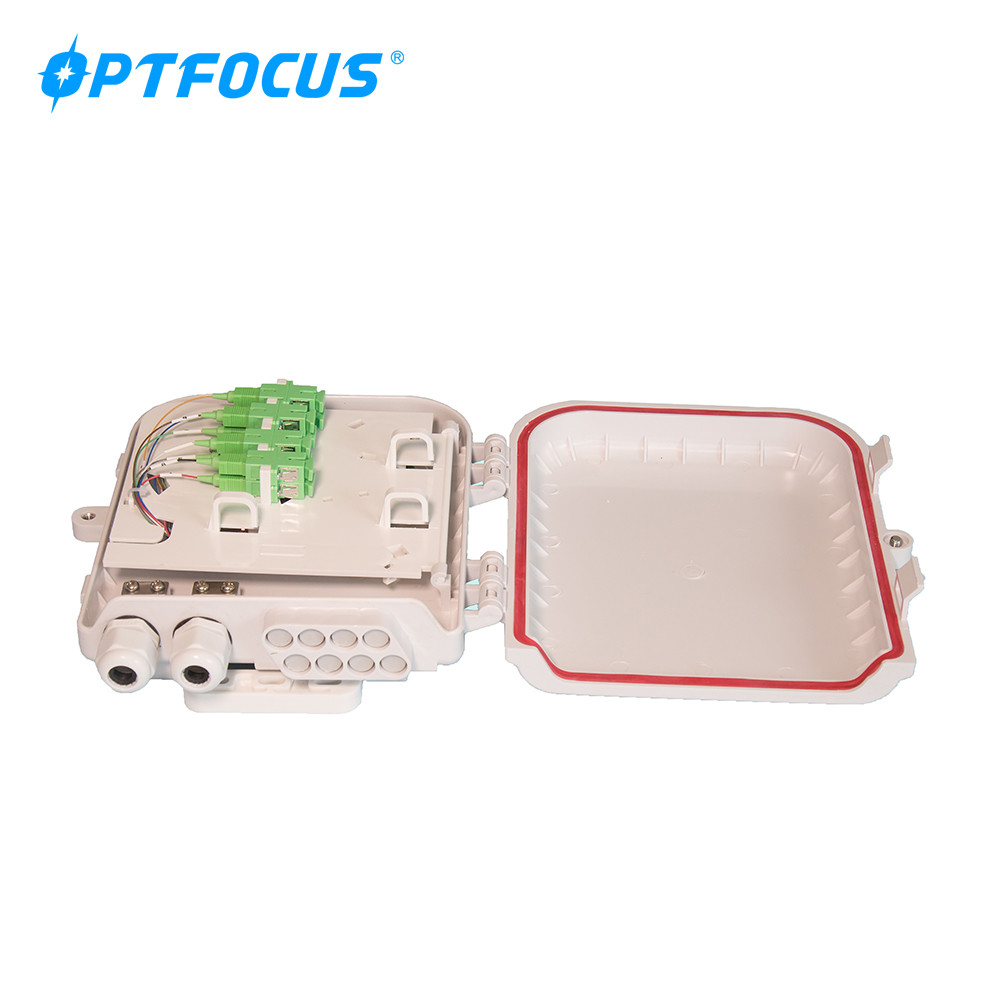

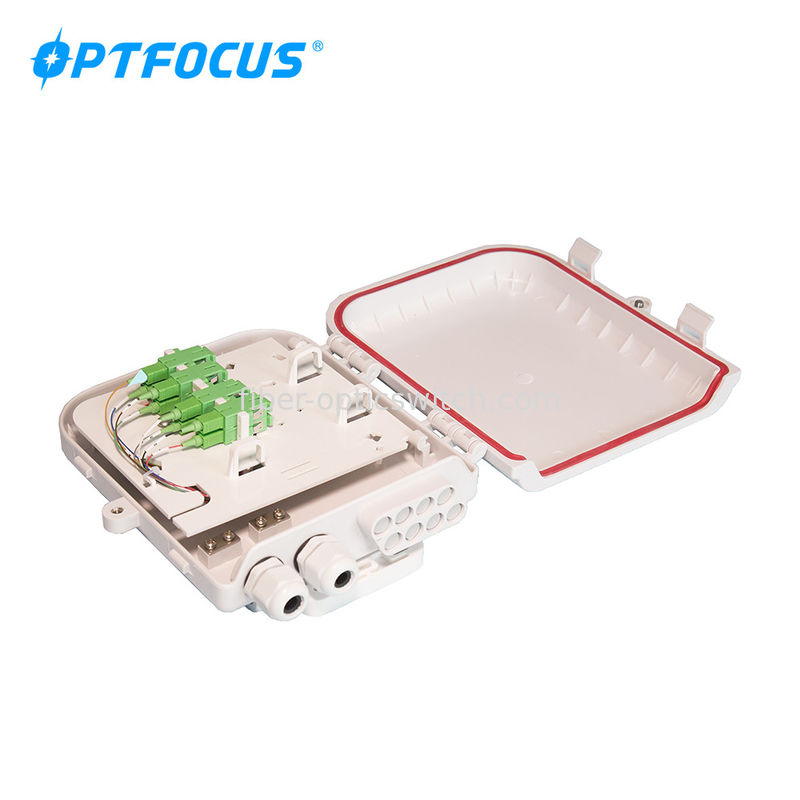

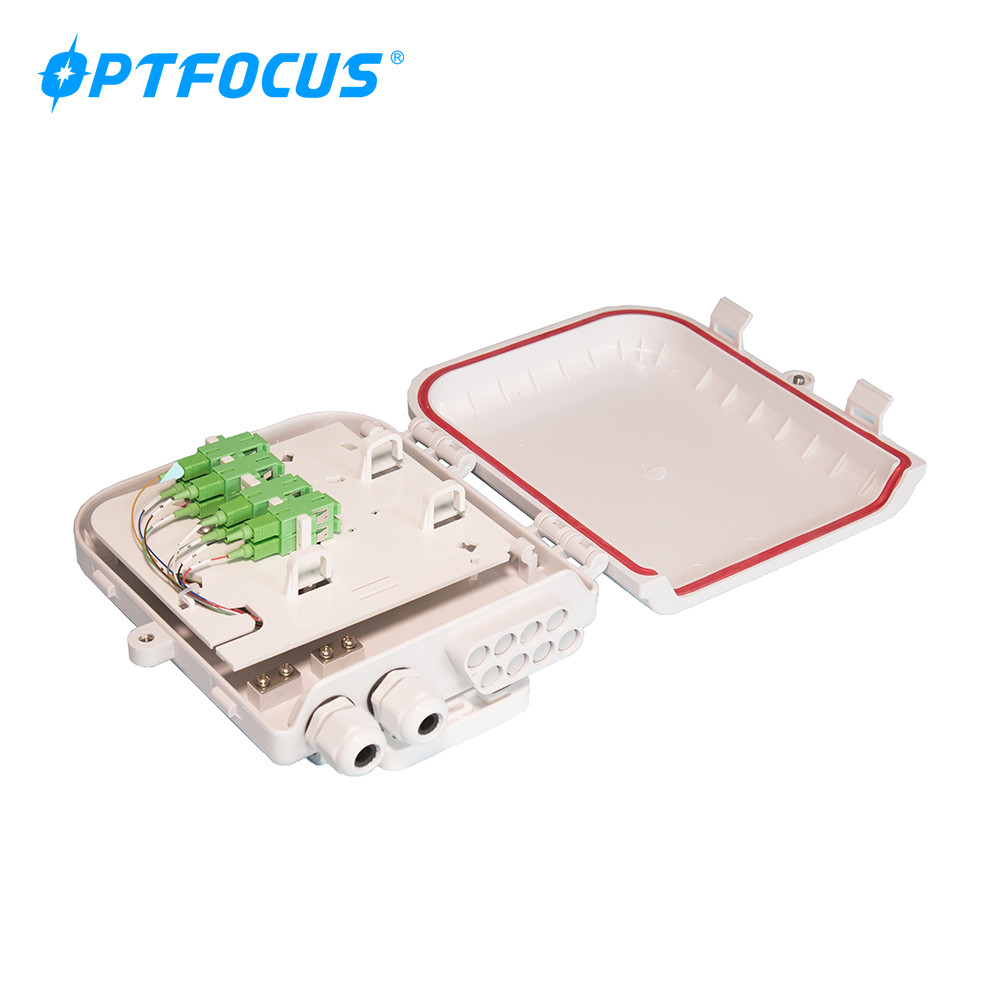

Terminal access box 8 ports waterproof easy installation fiber distribution box
1. Application
1.1 Widely used in FTTH access network.
1.2 Telecommunication Networks
1.3 CATV Networks
1.4 Data communications Networks
1.5 Local Area Networks
2. Features
2.1 Industry Standard User Interface, be made of high impact plastic.
2.2 Anti-UV, Ultra violet resistant and rainfall resistant.
2.3 Can accommodate 1×8 or 1×4 PLC splitter
2.4 Up to 8 FTTH drops.
2.5 Wall and pole mountable.
2.6 2 inlet ports, 8 outlet ports.
3. Specifications
| Item | Adaptor | Size | NW(KG/PCS) | Remark |
| OFS-FTH-208A | 8 SC adaptors | 200*215*54mm | 0.57 | 1*4 or 1*8 plc splitter |
4. Installation
① Install adaptors.
② Insert fiber cable into the input holes, then fixed it on the box by suitable fixation clamps as picture. (The length of input cable is about 1M)
③ Insert nude fiber into protective tube, then fix and trim input cable. (The length of protective tube is about 35cm)
④ Insert connectors of patch cords into adaptors, then lead the other end of patch cords into the back side of the tray. (The length of pigtail is about 55cm according to ringlike storage space)
⑤ Connect pigtails and input cables by fusion splice in sleeves or mechanical splice, the close tray cover.
⑥ insert outdoor fiber cable into output holes, install output connectors, then connect output connectors with adaptors, then sort out output cables and fix them.
⑦ Cut the rubber blocks, then insert them into the rest unused output holes.
