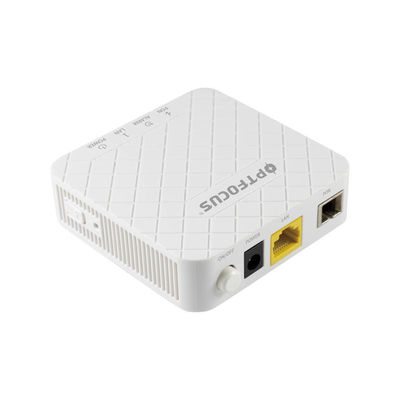

1000Base-T RJ45 1 PON 1GE Dual Mode SFF XPON ONU

Basic Information
Place of Origin: China
Brand Name: OPTFOCUS
Certification: CE
Model Number: OFSX511F-1
Minimum Order Quantity: 100 pcs
Price: USD 7.5~8.5/PIECE
Packaging Details: 1 piece / box
Delivery Time: 5-10 days, depend on the quantity
Payment Terms: L/C, T/T, Western Union, Paypal and so on
Supply Ability: 50000 pcs / month
Type: FTTH XPON ONU Brand: Optfocus
Specification: 1GE Sensitivity: -28 DBm
Package: 80 Pcs/ctn Function: Firewall / QoS / VPN
High Light:

Dual Mode SFF XPON ONU

,

1GE SFF XPON ONU

,

1 PON FTTH OLT ONU

Sample available FTTH ONU 1PON Port 1GE Dual Mode SFF XPON ONU





1000Base-T RJ45 1 PON 1GE Dual Mode SFF XPON ONU 0





1. Use latest RTL chipset, support router and bridge mode.
2. Support TR069, DHCP and PPPOE.
3. Lower power consumption, lower temperature, durable in use.

4. A true XPON solution, support EPON and GPON mode auto switch.
5. 1*10/100/1000Base-T RJ45 port, fully auto adaption.
6. Plug and play, easy management.





1000Base-T RJ45 1 PON 1GE Dual Mode SFF XPON ONU 1



7. Widely compatible with OLTs which based on Broadcom / PMC / Cortina chipset, like Huawei/Fiberhome/ZTE OLT.
8. Newest design: highly efficient cooling, carved oem logo, high class texture.

1000Base-T RJ45 1 PON 1GE Dual Mode SFF XPON ONU 2

1000Base-T RJ45 1 PON 1GE Dual Mode SFF XPON ONU 3



Basic Characteristics

Tech parameters description



Up-link interface

1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC

Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism

Wavelength(nm) TX 1310nm,RX 1490nm
Fiber connector SC/UPC connector (SC / APC optional)
Down-link data interface 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 4 pcs
DC supply interface input+12V 0.5A
Power ≤5W
Operating temperature -5~+55℃
Humidity 10~85%(non-condensation)
Storage temperature -30~+70℃
Dimension(MM) 80*80*22mm(mainframe)
Weight 0.24Kg(mainframe)



FAQ

1. what is your MOQ, can i have a small sample order?
Yes, we welcome the sample order to test and check the quality.



2. What are your payment terms?
Trade assurance, T / T, West Union or Cash.



3. What is your warranty time?
We promise a 1-year warranty for all products shipped by us.



4. What is the delivery time?
For usual products. We keep the stock, could send 1-3 days after the PO. For large quantities and special products, please check the delivery time with our sales representative.



5. Can I use our own logo and label?
Yes, we could provide OEM service and manufacture the products with your own label.
