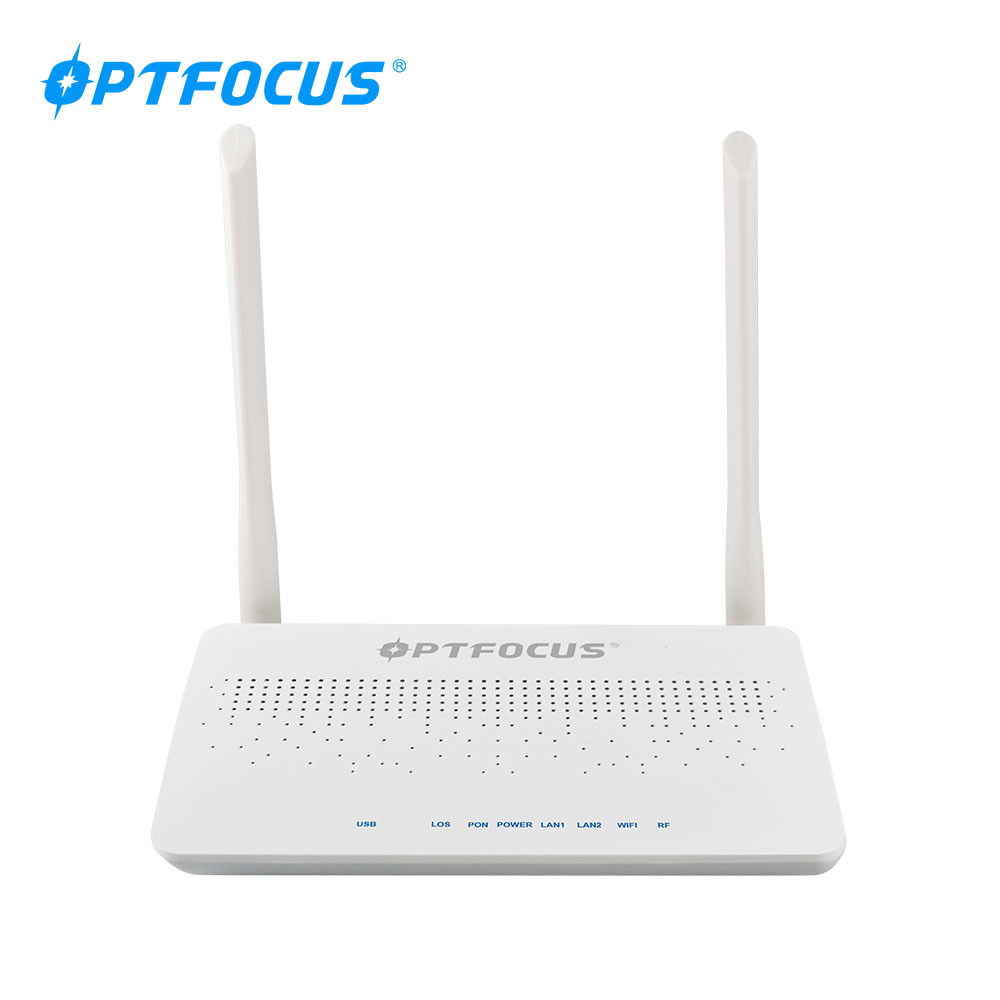

EPON XPON 1ge 1fe Catv Fiber Optic GPON OLT ONU

Basic Information
Place of Origin: CHINA
Brand Name: OPTFOCUS
Certification: CE,FCC
Model Number: OFSX622-CVW
Minimum Order Quantity: 1 Piece
Price: USD20-30/UNIT
Packaging Details: 27.2*4.5*16CM
Delivery Time: 3-15 workdays
Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability: 50000 pcs per month
Fiber Connector: Sc/APC Or Sc/Upc DC Supply Interface: Input +12V 0.5A
Weight: 0.5kg Humidity: 10~85%(Non-Condensation)
Compatibility: Mianstream Brand Wavelength(Nm): Tx 1310nm, Rx 1490nm
Chipset: RTL Warranty: 2 Years
Keywords: 2ports Catv Onu
High Light:

Fiber Optic GPON OLT ONU

,

1fe Catv GPON OLT ONU

,

EPON XPON CATV ONU

PON devices 2ports 1ge 1fe catv fiber optic GPON EPON XPON CATV ONU


PRODUCT DESCRIPTION:

OFSX622-CW

1GE+1FE Ethernet ports with Wifi WDM CATV XPON ONU for FTTH solution

Description:

OFSX622-CW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.

EPON XPON 1ge 1fe Catv Fiber Optic GPON OLT ONU 0

Basic Characteristics:

Tech parameters description
Up-link interface
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC
Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
Wavelength(nm) TX 1310nm,RX 1490nm
Fiber connector SC/UPC connector (SC / APC optional)
Down-link data interface 1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
Indicator LED 8 pcs
DC supply interface input+12V 1A
Power ≤7W
Operating temperature -5~+55ºC
Humidity 10~85%(non-condensation)
Storage temperature -30~+70ºC
Dimension(MM) 167*119*32mm(mainframe)
Weight 0.6Kg(mainframe)



WIFI CHARACTERISTICS:

Tech Features Description
Antenna

2T2R Mode

5DBI GAIN, frequency:2.4G

Rate 300Mbps PHY rate
Encryption WFA, WPA, WPA2, WAPI



CATV TECHNICAL FEATURES:

Tech Features description
optical Wavelength 1540-1560nm
optical input range 0-15dbm
optical return loss No less than 45db
Bandwidth 45-1000Mhz
Flatness +-1db
RF output level no less than 72dbuv
AGC control range 0~-14 dbm
RF out put return loss no less than 14db
Output impedance 75 ohm
CNR No less than 50db
CTB No less than 60db
CSO No less than 60db

FEATURE:

Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.

l Completely compatible with both GPON and EPON automatically.

l Support triple churning encryption request

l Support VOIP TRUNK

l Support the remote upgrade and download

l Support status detection and fault report

l Support TR069

l Support to configure the work mode at the user port

l Support MDI-MDIX automatic-detection at the user port.

l Support data encryption and decryption

l Support access authentication based on serial number

l Support access authentication based on MAC address

l Support 802.1Q VLAN

l Support rich QinQ VLAN functions and IGMP Snooping

l Support traffic rule to modify the related priority.

l Support the remote reset and reboot

l Support dying gasp outage alarm

l Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
