| Place of Origin: | China |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE ISO |
| Model Number: | OFSX622-W |
| Minimum Order Quantity: | 1 piece |
| Packaging Details: | 1 piece / box |
| Delivery Time: | 5-10 days, depend on the quantity |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 50000 pcs / month |
| Product Name: | Dual Mode Wifi XPON ONU | Fiber Connector: | SC/UPC Connector |
|---|---|---|---|
| Operating Temperature: | -5～+55℃ | DC Supply Interface:: | 12V 0.5A |
| Services: | OEM&ODM | Weight: | 0.45kg |
| Box Size: | 20*14.5*7.8CM | Proudct: | 167*119*32mm |
| High Light: | gpon onu,epon gpon |
||

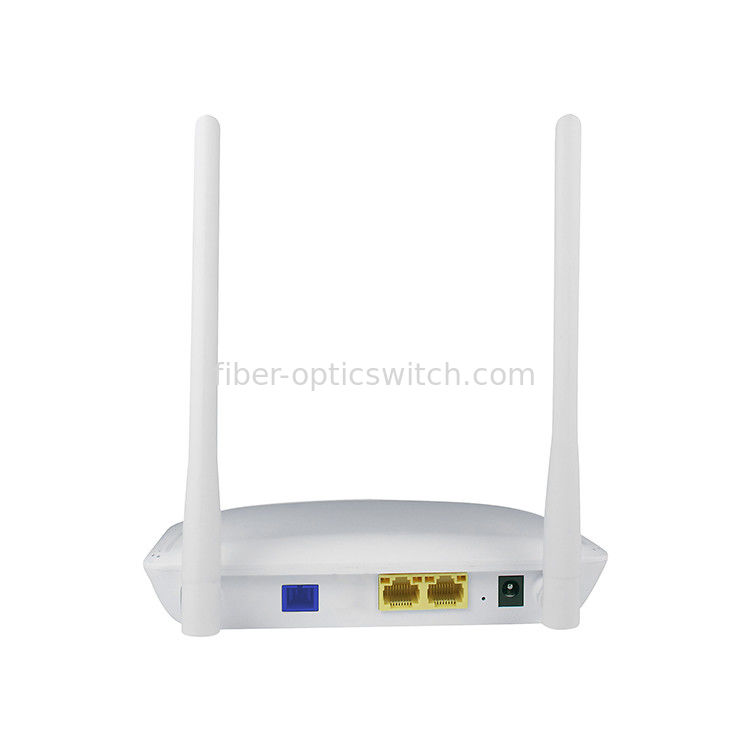

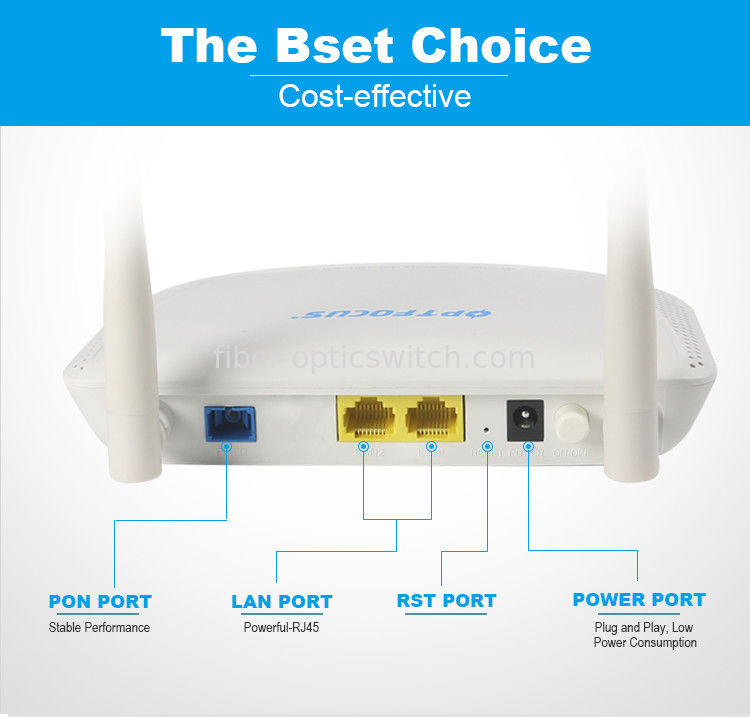

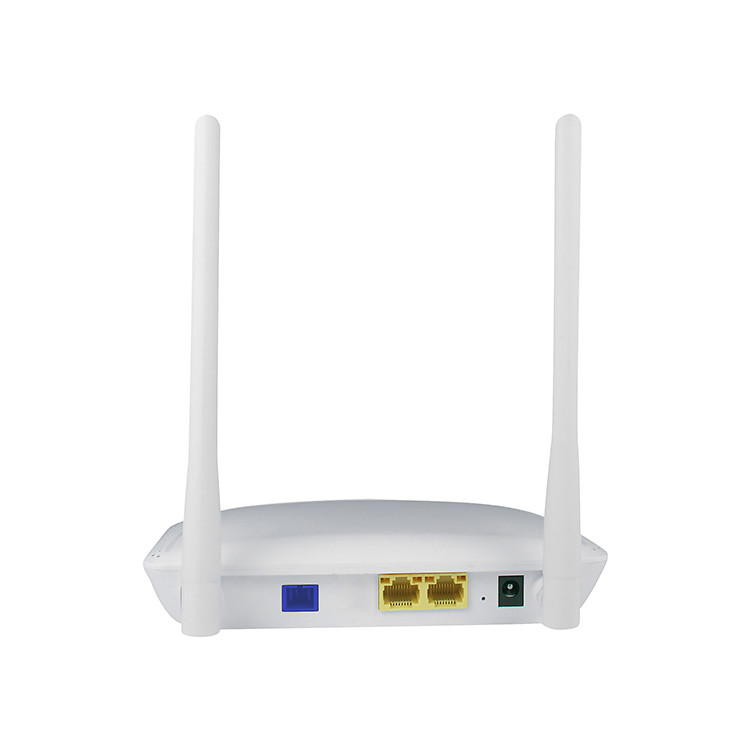

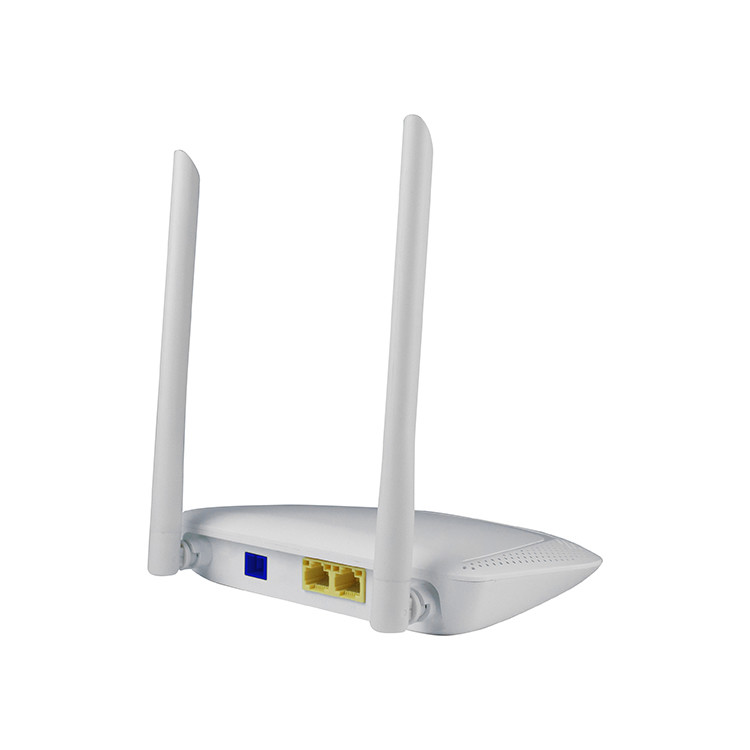

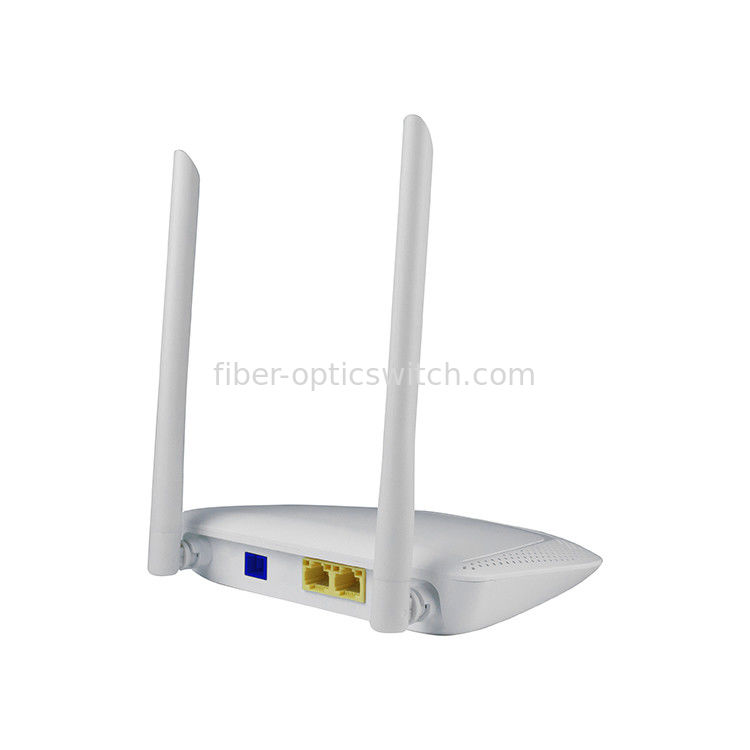

1GE+1FE+WIFI Dual Mode XPON ONT FTTH equipment
1GE+1FE Etheernet ports with WiFI WDM CATV XPON ONU for FTTH Solution
OFSX622-CW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON.
Tehnical specification
| Tech features | description |
| antenna |
2T2R Mode 5DBI Gain ,Frequency:2.4G |
| rate | 300Mbps PHY rate |
| encryption methods | WFA,WPA,WPA2,WAPI |
| Tech parameters | description |
|
Up-link interface |
1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 6 pcs |
| DC supply interface | input＋12V 1A |
| Power | ≤7W |
| Operating temperature | -5～+55℃ |
| Humidity | 5～95%(non-condensation) |
| Storage temperature | -30～+70℃ |
| Dimension(MM) | 167*119*32mm(mainframe) |
| Weight |
0.35Kg(mainframe) |
Solution
Packing:
Neatural packing:
0.5KG/PCS, 24PCS/ CTN, 48 * 43 * 38CM, 12KG/ CTN
