Product Details:

Place of Origin: CHINA
Brand Name: OPTFOCUS
Certification: CE, RoHS
Model Number: OFS-ETS104

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiable
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, L/C, paypal
Supply Ability: 3000 pcs per week
Contact Now
Detailed Product Description
Material: Iron Chassis: 19”, 1U
Input Power Range: 100V~240V AC Power Consumption: 36W
Warranty: 1 Year Backplane Bandwidth: 48Gbps
Temperature: -25~50ºC(Long Period)

OLT 4 Ports 8 GE GPON EPON Uplink Port 1 Console Port 1 Management Port 19 Inches



Overview

OPTFOCUS 104 (EPON OLT) has very high cost-performance ratio, it fulfills the standard IEEE 802.3ah protocol’s requirements and support China Telecom EPON device technical requirements’ V2.0, V2.1 and V3.0 standard. It allows different kinds of ONU to connect. The FTTB or FTTH optical network can be constructed by collocation of ONU and ODN. The uplink port of device supporting ring protection (<20ms). This device could be used in residence block’s Internet, communication and monitoring area.

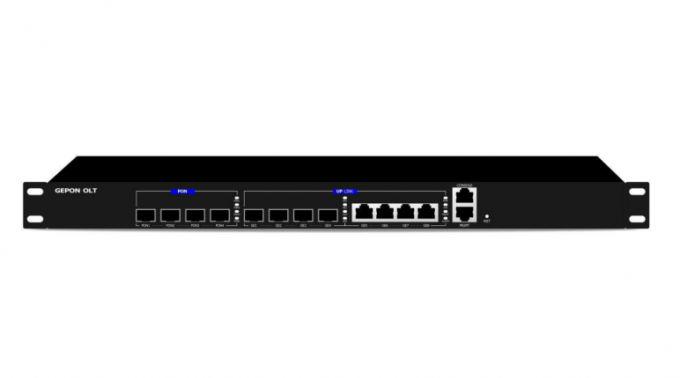

OPTFOCUS 104 used19 inches 1U standard chassis, front-back outlet, supporting AC 100~240V power input, integrative front business and management port, post placed power. It provides 4 EPON ports, 8 GE uplink port ( include 4 optical port and 4 10/100/1000Bast-T electrical port), 1 Console port and 1 out-of-band management network port as the figure shown below:

OLT 4 Ports 8 GE GPON EPON Uplink Port 1 Console Port 1 Management Port 19 Inches



 Product features

  • 19 inches standard width,1U height
  • EPON ports x 4,GB business uplink ports x 8 (4 optical, 4 electrical),Console port x 1,Out-of-band management network port
  • Allows 256 ONUs connection simultaneously
  • Support <20ms ring protection
  • Fulfills the standard IEEE 802.3 ah protocol’s requirements’ V2.0,V2.1 and V3.0 standard
  • Support ONU up-down line alarming, ring network alarming and port status change alarming
  • Support ONU data exchange at the same PON port
  • Support inter-PON-port physical isolation, pore one-to-one transmission and port-isolated group partition
  • Support IEEE 802.1q VLAN, QinQ configuration
  • Support multi-cast management (IGMP-Snooping/Proxy)
  • Support uplink port aggregation
  • Support port mirroring
  • Support RSTP(RSTP)
  • Support access control
  • Support traffic storm control
  • Support ONU certification
  • Support serial-pport and TELNET’s CLI management and joint NMS management
  • Support remote system update, ONU batch update, system log management and customized change

PON System features

1) Support DBA dynamic bandwidth distribution

2) Support ACL access control lists

3) PON port isolated from each other

4) Supporting traffic storm control

5) Support ONU interworking for the same PON port

6) Fulfill IEEE 802.3ah standard requirements, fulfill China Telecom CTC-V2.0,CTC-V2.1 and CTC-V3.0’s requirements

7) Support up-down line alarming

8) Support OLT power checking, ONU ranging

9) Support ONU certificating

10) Support addressing list management Etc.



Switching features

1) Support IEEE 802.1q VLAN, capacity is 4K, port QinQ;

2) Support multicast management (IGMP-Snooping V1V2V3 and Proxy)

3) Support port-isolated group configuration

4) Support port traffic storm suppression

5) Support port-mirroring

6) Support Ethernet-Ring ring protection (< 20MS) and RSTP

7) Support port rate control and mode control

8) Support addressing list management

9) Support QoS Etc.



Device management features

1) Support joint NMS management, serial port and TELNET’s CLI management

2) Support management IP configuration, management VLAN configuration and management user configuration

3) Support remote system update and ONU batch update

4) Support system alarming, ring network alarming and port status change alarming

5) Support system log management

6) Support system configuration management Etc.
