Detailed Product Description
Size: 19 Inches, 1U Standard Chassis Input Power Range: 100V~240V AC
Power Consumption: 36W Support Switch Or Not: Support Switch With Circuit Breaker
Ethernet GE Business Port: 8 Protocol: 10/100/1000BASE-T(RJ45) 1000BASE-X (SFP)
Backplane Bandwidth: 48Gbps

EPON OLT 4 EPON ports GPON EPON 1 Management Network Port 1U Standard Chassis



Overview

OPTFOCUS 104 (EPON OLT) has very high cost-performance ratio, it fulfills the standard IEEE 802.3ah protocol’s requirements and support China Telecom EPON device technical requirements’ V2.0, V2.1 and V3.0 standard. It allows different kinds of ONU to connect. The FTTB or FTTH optical network can be constructed by collocation of ONU and ODN. The uplink port of device supporting ring protection (<20ms). This device could be used in residence block’s Internet, communication and monitoring area.

OPTFOCUS 104 used19 inches 1U standard chassis, front-back outlet, supporting AC 100~240V power input, integrative front business and management port, post placed power. It provides 4 EPON ports, 8 GE uplink port ( include 4 optical port and 4 10/100/1000Bast-T electrical port), 1 Console port and 1 out-of-band management network port as the figure shown below:

    Product features

  • 19 inches standard width,1U height
  • EPON ports x 4,GB business uplink ports x 8 (4 optical, 4 electrical),Console port x 1,Out-of-band management network port
  • Allows 256 ONUs connection simultaneously
  • Support <20ms ring protection
  • Fulfills the standard IEEE 802.3 ah protocol’s requirements’ V2.0,V2.1 and V3.0 standard
  • Support ONU up-down line alarming, ring network alarming and port status change alarming
  • Support ONU data exchange at the same PON port
  • Support inter-PON-port physical isolation, pore one-to-one transmission and port-isolated group partition
  • Support IEEE 802.1q VLAN, QinQ configuration
  • Support multi-cast management (IGMP-Snooping/Proxy)
  • Support uplink port aggregation
  • Support port mirroring
  • Support RSTP(RSTP)
  • Support access control
  • Support traffic storm control
  • Support ONU certification
  • Support serial-pport and TELNET’s CLI management and joint NMS management
  • Support remote system update, ONU batch update, system log management and customized change

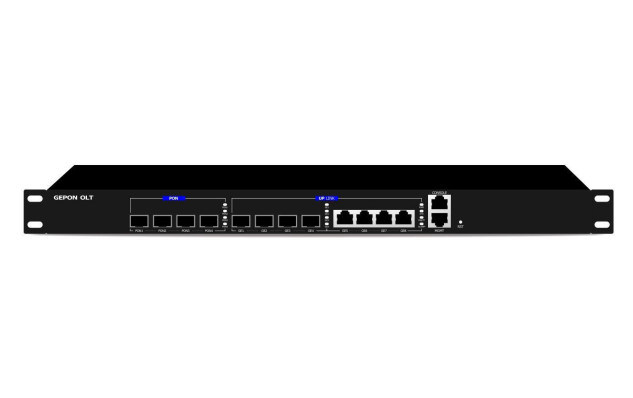

      Device panel description



EPON OLT 4 EPON ports GPON EPON 1 Management Network Port 1U Standard Chassis



Components number Name Detailed description
1 RST Reset button, factory reset button.
2 Console Device management port, fulfill RS232 standard requirement, using for local CLI management
3 MGMT Out-of-band management network port, supporting 10M/100M/1000M adaptive, using for remote network management.
4 PWR Power signal, lightening up means device is working properly.



5



SYS

System operation signal

Flashing in fast pace: System is loading

Flashing in slow pace: System is operating properly



6



MGMT signal light

Out-of-band network port management signal

Lights off: Unconnected status Lights on: Connecting status

Lights flashing: Data transmission status

7 Alarm

System alarm signal

Lights off: No alarming event happened Lights on: Alarming event happening

8 GE5-GE8 Uplink GE5-GE8 port, default 10M/100M/1000M adaptive





9





GE1-GE4 signal light

Uplink GE1-GE4 signal

Lights off: Unconnected status Lights on: Connecting status

Lights flashing: Data transmission status



10



GE1-GE4

Uplink 1000BASE-X port, 1000BASE-LX/SX Ethernet optical port, supporting 1.25Gbps single mode and multiple modes’ SFP light module





11





PON1-PON4 signal light

PON1-PON4 signal light

Lights off: Unconnected status Lights on: ONU registered

Lights flashing: Data transmission status

12 PON1-PON4 PON port, OLT specified SFP 1000M light module, connecting with ONU by optical-branching device
